Factory Offer Optical Fiber Equipment SC Connector Fiber Optic Cable Polishing Machine

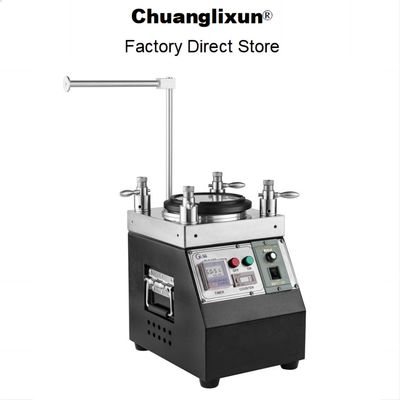

Fiber Optic Patch Cord Production Equipment/Optic Fiber Polishing Machine/Patch Cord Machine

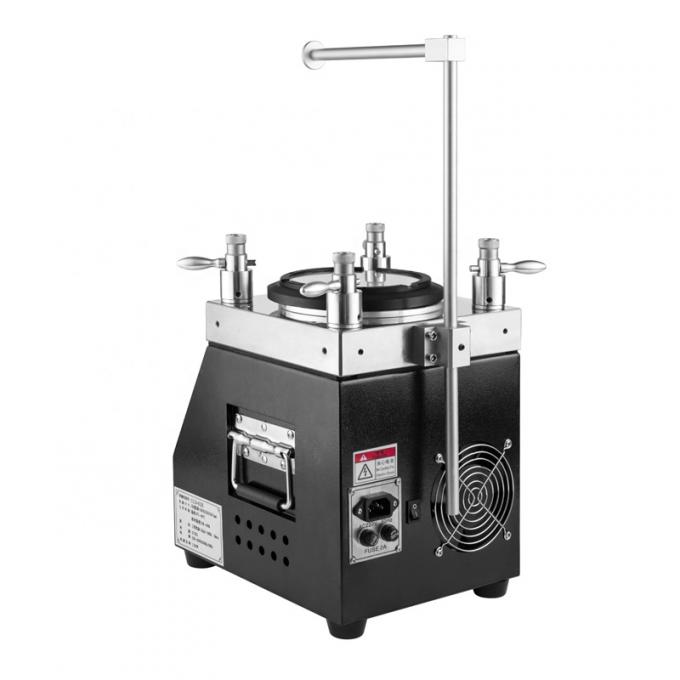

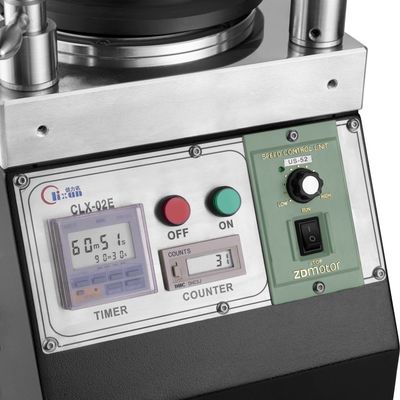

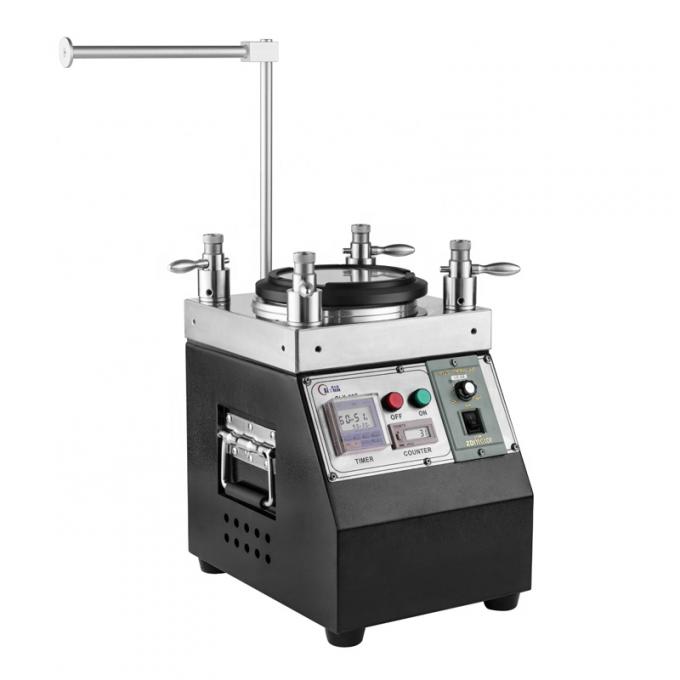

The Fiber Optical Polishing Machine is based on international universal standards and long-term hands-on experience. It exceeds requirements for GR-326 end face geometry, and adapts to four corners compression and new I.P.C. holder technology yielding the best results in the industry. No variability in result when polishing 1 or 24 connectors, with stable jig installation and compact size. This machine is designed for mass production needs, and can process excellent connector end-face of LC, SC, ST, FC, MTRJ, E2000 and other types as well as angle polishing.
Product Features

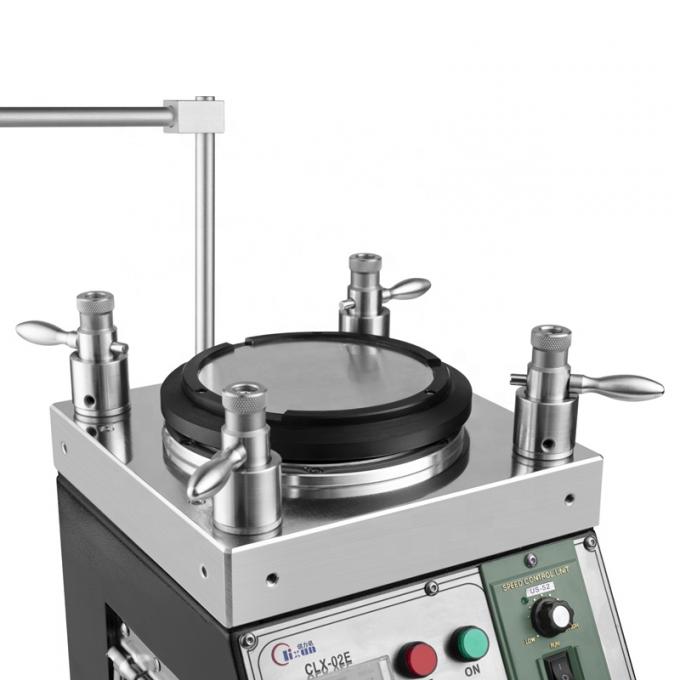

- High-precision Fiber Optic Polishing Equipment

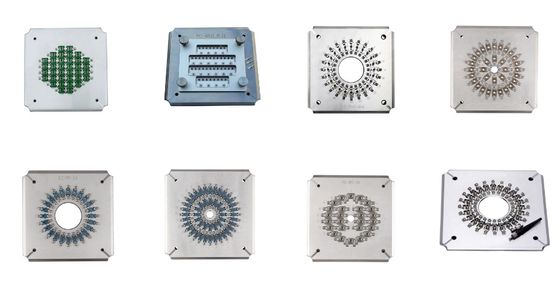

- Quick change polishing jigs
- Polishing trails obey the planet orbit with adjustable rotation speed (normally 140RPM)
- Maximum polishing capacity: 48 pcs for MU and LC connectors, 36 pcs for SC, FC, ST
- High efficiency with first pass yield for end face quality reaching 98%～100%
- IPC Structure fiber polishing fixture with independent compression of each connector
- Fiber optic connector polishing 3D pass rate ≥ 98% (100% Typical, according to IEC)
- APC return loss ≥60dB, PC(UPC)return loss ≥55dB, Insertion loss ≤0.20dB (typical)
- High quality stainless steel material after heat-treatment ensures high precision & durability
- Excellent stability with eight to ten years lifetime
Product Specifications
| Machine Type |
CLX-02E |
| Machine Size |
L 240(mm) × W 240(mm) × H 260(mm) |
| Net Weight |
28kg |
| Power Input |
110~230VAC 50Hz/60Hz |
| Electric Power |
126w |
| Relative Humidity |
15%~85% |
| Work Temperature |
8℃~45℃ |
| O.D. of Rotation Plate |
127 mm（5 inch） |
| Time Settings |
99 min 99 sec (Max) |
| Speed for Rotation Plate |
140 rpm |
| Height of Plate Jumpiness |
< 10 um |
| Pressure Configuration |
21 ~ 36 N/cm2 |
| Noice unloading Less |
50 dB Libration |
| Working Status |
0.25g 5~100Hz 10min |
| Stopping Status |
0.50g 5~100Hz 10min |
Get a free Quotation via Us >>> GO
Polishing Effect

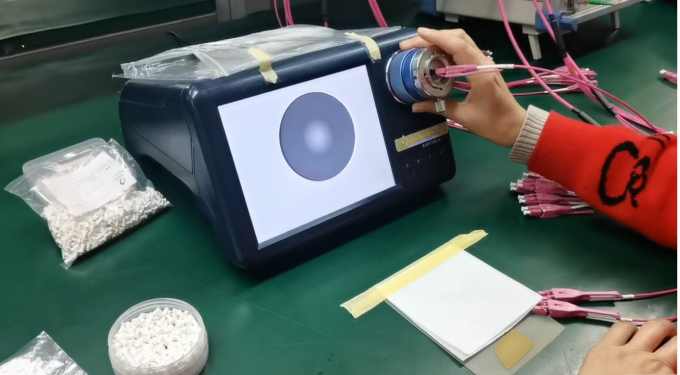

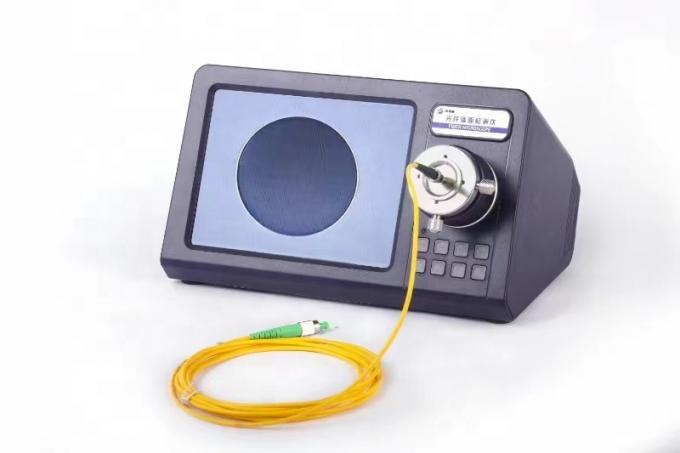

1. Fiber end face inspection results:
High-quality end-face polishing, no white spots, no scratches, the fiber edge is clearly visible

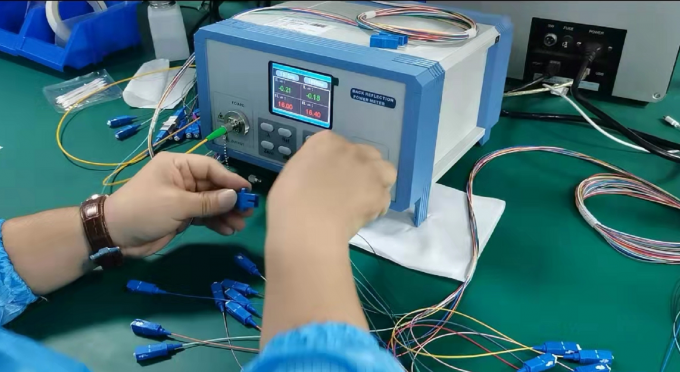

2. ILRL Test Result:
| Connector Type |
SM/UPC |
SM/APC |
MM/UPC |
| Insertion Loss |
≤0.20dB |
≤0.20dB |
≤0.50dB |
| Return loss |
≥55dB |
≥55dB |
≥30dB |

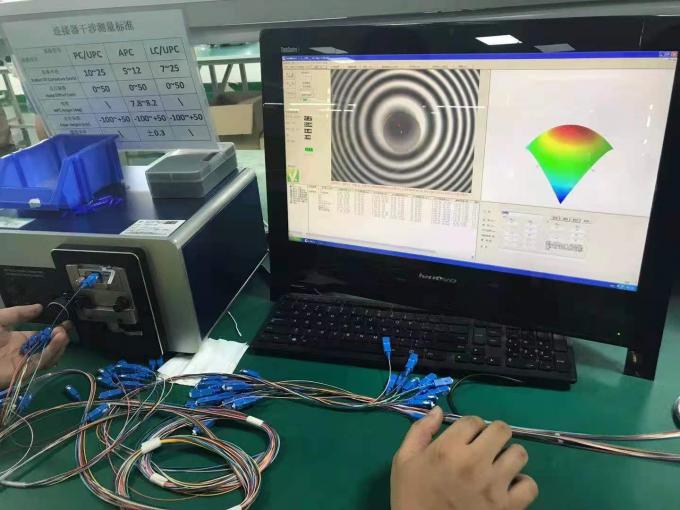

3. Geometry Test Result:
| NO. |
Parameters |
UPC Criterion |
APC Criterion |
| 1. |
Radius of Curvature |
5-25mm |
5-12mm |
| 2. |
Apex Offset |
0-50μm |
0-50μm |
| 3. |
Fiber Height |
-100~+50μm |
-100~+50μm |
| 4. |
Angle |
n/a |
8.00+/-0.50° |
Get a free Quotation via Us >>> GO
About Our Company
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010. We are an optical communications equipment company integrating research and development, production, after-sales service and technical services. We not only sell high-quality products and provide good after-sales service, but also provide free technical support to our customers. For the technical problems encountered in the production of optical fiber connectors, we offer effective solutions.
Certifications
Shipping Information

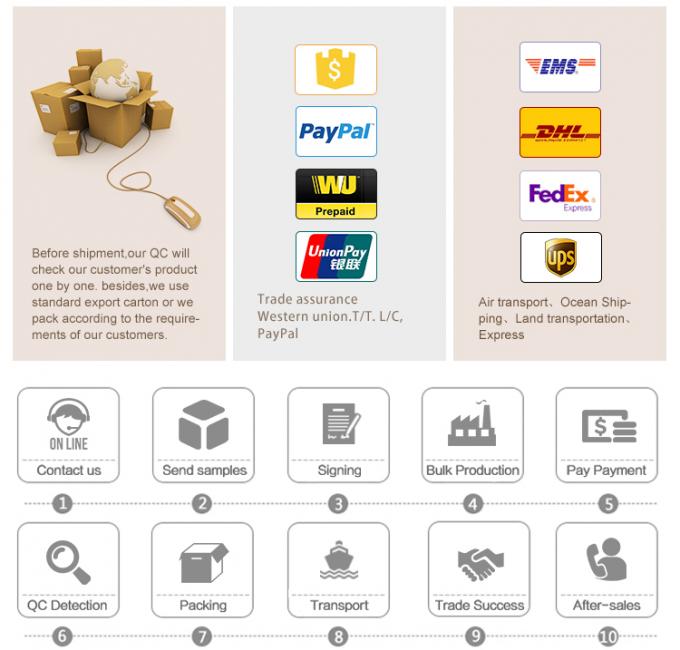

We usually use DHL, FEDEX, UPS, EMS, TNT or Sea shipping methods. These are the world's largest shipping companies. You can provide us with your courier account, and we will help you choose the most cost-effective option based on the quantity.
