Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB

1
MOQ
Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Тип разъема: LC/UPC
Материал: Нержавеющая сталь S136
Размеры: 174*174*26mm
Максимальная емкость: 40 позиций для разъемов LC ПК
Вес нетто: 10,3 кг
Вес брутто: 2kgs
Диаметр оборотов: 1,25 мм
Вставка потеря: ≤0,20 дБ
Возвращаяся потеря: ≥ 55 дБ (UPC)
Тип конечной грани: В UPC
break: 5-25 мм
Смещение вершины: 0-50 мкм
Высота волокна: -100~+50 мкм
Угол: 8,00+/-0,50° (APC)
Выход за первый проход: 98%～100%
Выделить:

First Pass Yield 98-100% Polishing Fixture

,

UPC Return Loss ≥55dB Fiber Optic Polishing Jig

,

Insertion Loss ≤0.20dB Optical Polishing Fixture
Основная информация
Место происхождения: Гуандун, Китай
Фирменное наименование: Chuanglixun
Номер модели: ЛК УПК-24, ЛК УПК-40, ЛК УПК-48
Оплата и доставка Условия
Характер продукции
Fiber Optic Polishing Fixture For LC UPC Connector

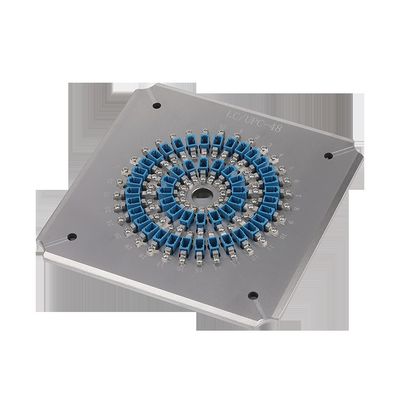

This high-stability fiber polishing fixture delivers excellent surface quality for LC UPC connectors. Constructed from heat-treated hardened steel S2316 for extended service life, it supports various connector types including SC, FC, ST, and LC, with customization available upon request.
Key Features
  • Specifically designed for LC UPC connectors
  • Easy jig changing with simple, flexible operation
  • High efficiency: polishes 24, 40, or 48 connectors per cycle
  • 98%-100% first-pass yield for end face quality
  • IPC structure with independent compression for each connector
  • UPC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life
Technical Specifications

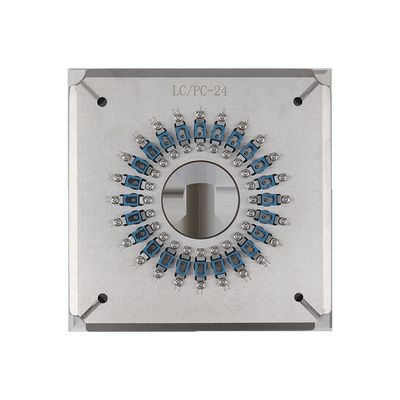

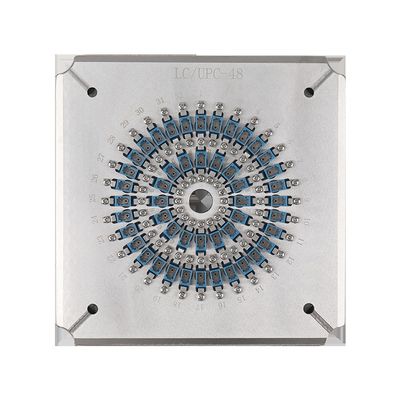

Model LC-UPC-24 LC-UPC-40 LC-UPC-48
Brand CLX
Connector Type LC UPC
End-face UPC
Ferrule Diameter 1.25mm
Capacity 24 positions 40 positions 48 positions
Insertion Loss ≤0.20dB
Return Loss ≥55dB (UPC) ≥55dB (APC) ≥55dB (APC)
Application Polishing assembled LC UPC connectors
Material Stainless Steel S136
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight (kg) 1.5 kgs / 2.0 kgs
Suitable machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar models
Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB 0 Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB 1
Polishing Performance
1. Polished Connector Ferrule Faces
Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB 2
Delivers high-quality end-face polishing with no white spots or scratches, featuring clearly visible fiber edges.
2. ILRL Test Results
Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB 3
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB
3. Geometry Test Results
Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB 4
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
